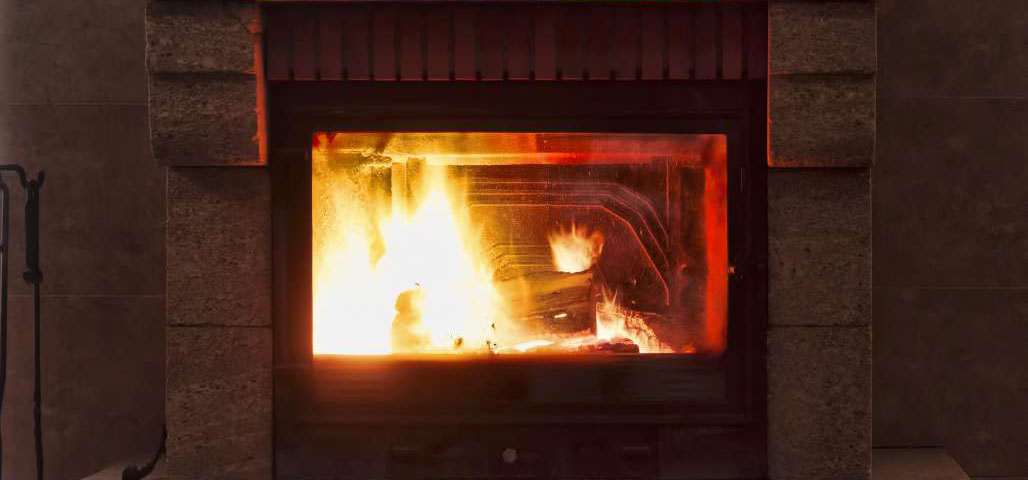

Wood Fireplace Insert Installation

If you’ve noticed your fireplace producing more ambiance than actual heat, you’re not imagining it. Open masonry fireplaces operate at roughly 10–15% efficiency — meaning the overwhelming majority of the heat produced goes straight up the flue. A wood fireplace insert changes that completely. It turns a drafty, inefficient firebox into a real heating source without touching your existing chimney structure. We handle the full process here in Statesville — from sizing and liner installation to code compliance and final performance testing — so you get it done correctly the first time.

Why Choose a Wood Burning Insert

An open fireplace creates a large, unsealed opening to the outside. In modern, well-insulated homes, that opening can actually pull conditioned air out of the living space and create negative pressure issues. A wood insert solves this by placing a sealed, steel or cast iron firebox directly into the existing masonry opening. The gap between the insert and the surround is sealed off, and a stainless steel liner runs from the insert collar to the top of the chimney, creating a dedicated exhaust path.

EPA-certified wood inserts operate at 70–80% efficiency — a massive improvement over an open fireplace. For homeowners in Statesville and surrounding areas like Mooresville, Troutman, and Harmony who already have a working fireplace and chimney, an insert is the most cost-effective path to meaningful supplemental heat. We help you choose the right unit based on your home’s square footage, your heating goals, and the dimensions of your existing firebox, so you end up with something that actually performs.

Hybrid Catalytic Wood Inserts

Not every wood insert burns the same way. Hybrid catalytic models — like several of the Regency Cascades and Pro-Series units we install — combine a catalytic combustor with a secondary combustion system to extract more heat from each load of wood while producing significantly less smoke and creosote.

The practical difference matters. A hybrid catalytic insert burns longer between reloads, hits higher efficiency ratings (often 78–80%+), and produces emissions well below current EPA limits. For homeowners who plan to use their insert as a real heat source through a Statesville winter — not just for occasional ambiance — hybrid catalytic technology is worth understanding.

Hybrid models we commonly install include:

• Regency Cascades F1500 — small hybrid wood stove/insert configuration
• Regency Cascades F2500 — medium hybrid
• Regency Pro-Series F5200 — extra-large, serious heating output
• Regency i3000 — wood insert with hybrid catalytic system

These units are typically a step up in price from a basic non-catalytic insert, but the long burn times, lower wood consumption, and cleaner combustion often make them the right call for primary-heat applications. We’ll walk you through whether hybrid catalytic makes sense for your home during the consultation — and whether a simpler non-catalytic unit would serve you better.

How Insert Installation Works

Inspection and Firebox Assessment

Every insert project we take on starts with a Level 2 chimney inspection — that’s our standard policy for all new clients, and it’s there for a good reason. Before we recommend or order any unit, we need to know what we’re working with. We run a camera through the flue to check for cracks, separation, or deterioration that could affect liner installation or draft performance. We also measure the firebox opening precisely — height, width, and depth — because insert fit matters both for appearance and for proper sealing. If the inspection turns up issues like a damaged smoke chamber or crown, we’ll tell you about them upfront so nothing surprises you mid-project.

Chimney Liner Sizing and Installation

Installing an insert without a proper liner isn’t just a code violation — it’s a genuine safety hazard. Without a correctly sized liner, combustion gases can seep into wall cavities or back into the living space. We size the stainless steel liner based on the appliance manufacturer’s specifications and the total flue height, then run it from the insert collar all the way to the chimney cap at the top. We also wrap the liner with insulation, which does two things: it improves draft by keeping flue gases warmer on the way up, and it reduces condensation inside the liner that would otherwise accelerate deterioration. All of our liner installations follow NFPA 211 insert installation standards — not because it’s required, but because it’s the right way to do the job.

Ready to find out what your project involves? Give us a call or text at (704) 610-6388 and we’ll get you scheduled for an evaluation.

Setting the Insert and Final Connections

Once the liner is in place, we set the insert into the firebox opening and fit the surround panels and trim kit to create a finished, sealed appearance against the fireplace face. Before we leave, we also check hearth extension requirements — the non-combustible material in front of and to the sides of the unit needs to meet code minimums, and if your existing hearth falls short, we’ll address it. The final step is smoke and draft performance testing. We verify that the system drafts properly and that everything is sealed correctly before we pack up. If something isn’t right, we fix it on the spot.

EPA-Certified Wood Insert Standards

EPA certification isn’t just a marketing label. Under the current 2020 Step 2 standards, wood-burning appliances are limited to 2.0 grams of particulate emissions per hour. That standard exists because older, non-certified units produce significantly more smoke and creosote — which is a problem for air quality and for chimney maintenance. We only sell and install units that meet or exceed current EPA requirements. Beyond the environmental and code compliance angle, there’s a practical payoff: a certified insert burns more completely, which means less creosote buildup in the liner and less wood consumed for the same amount of heat output. Over a few heating seasons in Statesville, that efficiency difference adds up.

Fireplace Insert Cost and Installation Factors

Cost is usually the first question, and we’ll be straightforward with you: there’s no single number that applies to every project. The total cost of a wood fireplace insert installation depends on several things that vary from home to home.

The insert unit itself is the largest variable — size, brand, and features like blower fans, ash drawers, and glass door configuration all affect the price. Liner cost depends on the length of your flue run, the diameter required by your specific appliance, and whether insulation wrap is needed (it almost always is). Prep work matters too — if the inspection finds issues like smoke chamber damage or deteriorated masonry that need to be addressed before installation, that adds to the project scope. Hearth modifications, if your existing hearth doesn’t meet code dimensions, are another factor. And depending on your jurisdiction, a permit may be required.

The most useful thing we can do for you is come out to your home in Statesville — or wherever you’re located in the area — and give you an accurate, no-surprise quote based on what’s actually there. We offer a free on-site evaluation for that reason. If you want to spread the cost over time, we also work with Wisetack to offer financing options for homeowners who prefer that.

Heating Efficiency and Long-Term Value

The efficiency gains from a Statesville fireplace upgrade go beyond the fireplace room itself. A common strategy is zone heating — using the insert to keep the main living area warm while turning down the central system. Depending on your home’s layout, this can make a meaningful dent in your heating bills through the colder months. Homeowners from Denver to Cornelius who’ve made this switch often find they rely on their central heat far less from November through February.

A properly installed insert, with annual maintenance, can last 20–30 years. That lifespan depends largely on keeping the liner clean — creosote accumulation is the primary cause of deterioration and the primary fire risk in any wood-burning system. Annual chimney sweeping is part of what protects your investment, and it’s something we handle as part of our ongoing maintenance services for customers throughout the area.

Schedule Your Statesville Insert Installation

We take care of every step — the inspection, the liner, the insert setting, and the performance verification before we leave your driveway. If you’re ready to stop losing heat through an open firebox, reach out and we’ll get the process started. It begins with a Level 2 inspection so you know exactly what your project involves before committing to anything.

Request a Quote

Prefer to talk it through first? Call or text us at (704) 610-6388. We’re available Monday through Friday, 7:30 AM to 5:00 PM.
